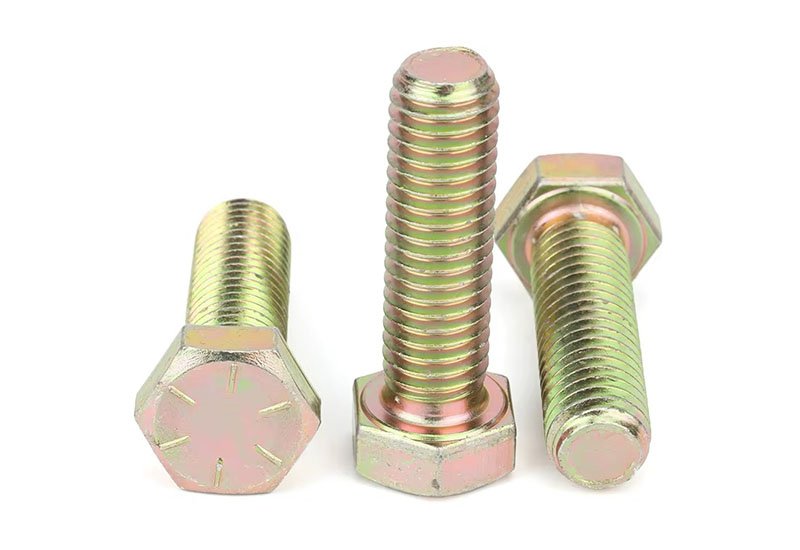

ASME/ANSI B18.2.1 Hex Bolts Inch Series

ASME/ANSI B18.2.1 Hex Bolts

ASME/ANSI B18.2.1 Hex Bolts define the core geometry for inch-series hexagon head bolts used in machinery, construction, transportation, and maintenance work around the world. Whenever engineers design equipment to American standards, they rely on ASME/ANSI B18.2.1 Hex Bolts with UNC or UNF threads to guarantee interchangeability and predictable strength. These inch bolts are available in a wide range of diameters, lengths, and strength grades, making them suitable for everything from light-duty brackets to heavy structural joints.

Because so many imported machines, agricultural vehicles, and industrial systems are based on U.S. design practices, stocking reliable inch hex bolts has become essential for global distributors and maintenance teams. Flybear Fastener supports this demand by supplying ASME/ANSI B18.2.1 UNC and UNF hex bolts with stable quality, tight dimensional control, and full traceability.

UNC vs. UNF: Choosing the Right Thread for the Job

The Unified National Coarse (UNC) series is the most common thread type in general construction and maintenance. UNC bolts have fewer threads per inch and deeper thread roots, making them more tolerant of minor damage and better suited for softer materials such as cast iron, mild steel, or aluminum. They are also easier to assemble in the field, which is why many structural joints, frame connections, and supports use UNC hex bolts.

Unified National Fine (UNF) threads, by contrast, feature more threads per inch and a shallower profile. This increases the tensile stress area and provides improved resistance to vibration and loosening. UNF hex bolts are commonly used in automotive suspensions, engine components, aircraft structures, and other applications where space is limited and precise preload control is required.

Strength Grades and Head Markings for ASME/ANSI B18.2.1 Hex Bolts

To help technicians quickly identify bolt capability, SAE J429 defines mechanical property grades that are widely applied to ASME/ANSI B18.2.1 hex bolts. Grade 2 is used for light-duty applications, Grade 5 provides a medium-strength option, and Grade 8 offers high-strength performance for demanding joints. Head markings—no radial lines for Grade 2, three lines for Grade 5, six lines for Grade 8—appear on the top of the hex head to identify the grade even after years of service.

Selecting the correct grade depends on the design load, safety factor, and service conditions. For critical joints, many engineers also specify matching nuts and hardened washers to ensure uniform bearing stress and long-term reliability.

Surface Finishes and Corrosion Protection

ASME/ANSI B18.2.1 UNC and UNF hex bolts are available in many finishes, including plain oiled, electro-zinc plating, mechanical galvanizing, hot-dip galvanizing, black oxide, and PTFE or Xylan coatings. Zinc-plated inch hex bolts are popular for indoor or mild outdoor exposure, while hot-dip galvanized bolts are preferred in highly corrosive or marine environments. Specialty coatings provide additional chemical resistance and controlled friction for more accurate torque–tension relationships.

Applications of ASME/ANSI B18.2.1 Hex Bolts in Industry

Thanks to their standardization and broad availability, ASME/ANSI B18.2.1 Hex Bolts are used in:

Industrial machinery frames and equipment bases
Construction vehicles, trailers, and agricultural equipment
Steel structures, building connections, and handrail systems
Maintenance and repair operations involving imported U.S. equipment
Automotive chassis and general mechanical assemblies using UNC or UNF threads

For distributors and OEMs, stocking both UNC and UNF sizes ensures compatibility with the widest possible range of inch-threaded products. When paired with precise nuts and washers, ASME/ANSI B18.2.1 Hex Bolts offer a dependable bolting solution for global markets.
