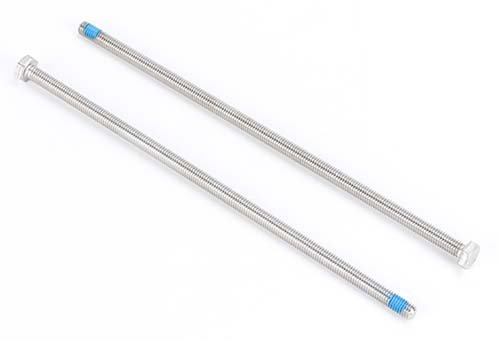

304 SS Passivation Hex Threadlocker Coated Bolt
304 SS Passivation Hex Threadlocker Coated Bolt is a high-performance fastener designed to offer superior corrosion resistance, secure locking ability, and long-term reliability in demanding mechanical and structural applications. Specifically engineered using Type 304 stainless steel with a passivated finish and a specialized threadlocker coating, this bolt ensures excellent resistance to rust and vibration loosening.
Manufactured to tight tolerances with a hexagonal head design, it aligns perfectly with tools for precise torque application. The additional threadlocker coating significantly enhances locking effectiveness without requiring external adhesives. Ideal for applications requiring secure and semi-permanent fastener connections, this bolt is widely used in automotive, construction, marine, and industrial sectors.
Product Specifications
| Specification | Detail |
|---|---|
| Product Name | 304 SS Passivation Hex Threadlocker Coated Bolt |
| Head Type | Hexagon Head |
| Thread Type | Metric / UNC / UNF (customizable) |
| Thread Diameter Range | M4 to M24 / 1/4″-1″ (as required) |
| Length Range | 10mm – 200mm |
| Material | 304 Stainless Steel |
| Surface Finish | Passivated + Threadlocker Coating |
| Coating Color | Blue or Red (Optional) |
| Tensile Strength | ≥ 520 MPa |
| Customization Available | Yes |
Technical Parameters
| Parameter | Value |
|---|---|
| Grade | A2-70 (Typical for 304 SS) |
| Hardness | HV 228 – HV 290 |
| Thread Tolerance | 6g / 6H / Customized |
| Coating Adhesion | ≥ Class 2A |
| Salt Spray Resistance | ≥ 500 Hours |
| Threadlocker Activation Temp | -50°C to +150°C |
| Friction Coefficient | 0.12 – 0.18 |
Material Introduction & Manufacturing Process
The 304 SS Passivation Hex Threadlocker Coated Bolt is made from premium 304 grade stainless steel known for its corrosion resistance and strength. The passivation process involves chemically removing free iron and surface contaminants, forming a chromium-rich oxide layer that enhances corrosion resistance.
The manufacturing process includes:
- Cold forging to shape the hex head.
- Thread rolling for precision threading.
- Heat treatment (if required for strength).
- Passivation to increase corrosion resistance.
- Application of threadlocker coating to threads.
- Final inspection and packaging.
These steps ensure a consistent, high-quality product tailored to exact application needs.
Common Industries and Applications
The bolt finds essential use across a diverse range of industries:
- Automotive (Engine assemblies, exhaust systems)
- Construction (Steel frameworks, anchor bolting)
- Marine (Boat deck fittings)
- Renewable Energy (Wind turbine components)
- Aerospace & Defense (Vibration-sensitive connections)
- Industrial Machinery (Heavy-duty machine parts)
With its advanced thread-locking protection and corrosion resistance, it’s a preferred choice in high-vibration environments.
Product Advantages and Competitive Edge
Featuring Core Keyword: 304 SS Passivation Hex Threadlocker Coated Bolt
- Premium Material: Crafted from high-quality 304 stainless steel, offering excellent resistance to rust and chemicals.
- Precision Engineering: Tight tolerance control ensures compatibility and structural integrity.
- Enhanced Surface Treatment: Passivation and threadlocker coating deliver dual protection.
- Reliable Locking Capability: Threadlocker coating prevents loosening under vibration.
- Full Customization: Available in various sizes, threads, and coatings according to application demands.
- Robust Supply Chain: Ready stock and efficient logistics ensure timely delivery.
- Complete Technical Support: Post-sales service includes a knowledgeable team for application consultations.
Quality Control & Inspection
At Flybear Fastener, each bolt goes through stringent in-house quality checks, including:
- Dimensional inspection with calibrated gauges.
- Coating adhesion and salt spray tests.
- Mechanical tensile and hardness testing.
- Thread accuracy and fit tests.
- Visual inspection for surface defects.
These quality measures ensure every batch meets international standards like ISO, DIN, and ANSI.
Selection & Procurement Guide
Choosing the right bolt depends on:
- Thread Type & Size: Match application load and assembly requirements.
- Environmental Conditions: 304 SS is ideal for humid, corrosive environments.
- Load Characteristics: Consider tensile and shear requirements.
- Vibration Levels: Threadlocker-coated bolts are ideal for high-vibration assemblies.
Request product datasheets or consult our engineers before purchase. For bulk orders or special sizes, custom manufacturing is available.
Conclusion & Company Message
The 304 SS Passivation Hex Threadlocker Coated Bolt is an indispensable component in any high-performance assembly. Its reliability under extreme environments, anti-corrosive characteristics, and anti-loosening threadlocker design make it a preferred solution across industries.
At Flybear Fastener, we uphold the philosophy of “quality first, customer foremost” by offering premium fastener products and one-stop fastening solutions tailored to your industry needs. We encourage clients to browse more product categories and contact us for technical guidance and competitive quotations.
