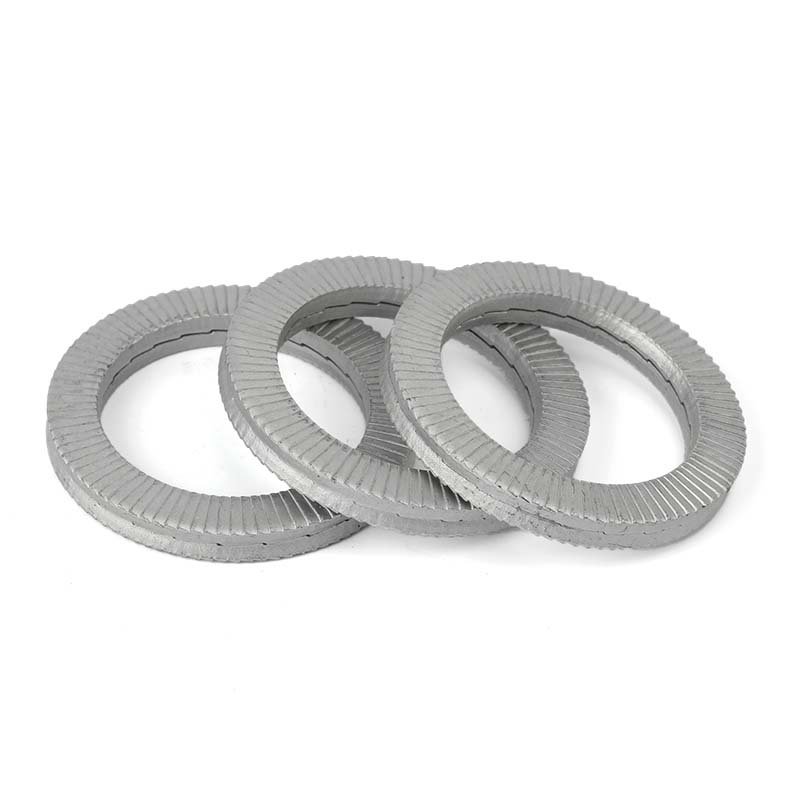

Carbon Steel DIN 25201 Wedge Locking Washer
Product Overview
DIN 25201 Wedge Locking Washer is a highly reliable locking solution designed to maintain bolted joint integrity even under conditions of extreme vibration and dynamic loads. This self-locking washer system consists of two identical washers with radial teeth on one side and a wedge ramp on the other, which interlock during installation. These washers are engineered to secure fasteners where standard washers may fail, particularly in high-stress mechanical assemblies using carbon steel bolts.
DIN 25201 Wedge Lock Washers are commonly used when safety and reliability are paramount. Their performance far exceeds that of standard lock washers by using tension rather than friction to prevent loosening.
Product Specification Table
| Product Name | DIN 25201 Wedge Locking Washer |
|---|---|
| Standard | DIN 25201 |
| Material | Carbon Steel |
| Size Range | M3 to M130 |
| Surface Treatment | Dacromet |
| Hardness | ≥HV450 |
| Application Torque Range | According to ISO Mechanical Properties Standards |
Technical Datasheet
| Property | Value |
|---|---|
| Washer Thickness | 2.2 to 8 mm (depending on size) |
| Hardness | 45 HRC |
| Operating Temperature Range | -50°C to +250°C (depending on coating) |
| Friction Coefficient | μ = 0.1–0.17 |
| Locking Mechanism | Cam/Wedge Effect |
Material Description & Manufacturing Process
Our DIN 25201 Wedge Locking Washer is crafted from premium carbon steel, delivering high tensile strength and longevity under mechanical stress. Carbon steel is selected for its favorable strength-to-cost ratio and its compatibility with a variety of coatings including zinc plating and black oxide for improved corrosion resistance.
Manufacturing Process:
- Raw material inspection & selection
- Precision stamping and forming
- Hardening heat treatment
- Surface coating (by request: Zinc, Electro-galvanized, Delta Protekt®)
- Laser marking (optional for part identification)
- Final dimensional and functional inspections
This process ensures every washer meets tight dimensional tolerances and mechanical strength requirements.
Common Industries and Application Scenarios
DIN 25201 Wedge Lock Washers serve critical roles in industries where vibration and safety are top concerns, including:
- Railway systems and signaling equipment
- Wind turbine installations
- Heavy machinery and construction equipment
- Automotive and commercial vehicles
- Aerospace manufacturing
- Marine and offshore installations
- Renewable energy and solar panel mounting systems
These washers are particularly vital when the cost of joint failure—either financially or in safety terms—is high.
Product Advantages and Competitive Edge
Core Strengths:
- Superior Material Selection: High-grade carbon steel offering optimal strength and durability.
- Precision Engineering: Manufactured with strict tolerances to ensure consistent torque and preload.
- Advanced Surface Treatment: Corrosion-resistant coatings extend service life, even in harsh environments.
- Custom Solutions: Capable of tailored production as per customer specifications.
- Sufficient Inventory & Timely Delivery: Ensures reduced lead times.
- Comprehensive Post-Sales Support: Engineering consultation and after-sales services available.
These features make the DIN 25201 Wedge Locking Washer ideal for applications requiring dependable locking mechanisms over time.
Company Inspection & Quality Control
At Flybear Fastener, our commitment to quality starts before manufacturing. All incoming materials are tested for mechanical properties and chemical composition. Throughout the production stages, our in-house QC team performs:
- Dimensional Testing
- Surface Roughness Testing
- Torque Test Simulation
- Salt-Spray Testing for Corrosion Resistance
- Load and Vibration Endurance Testing
We are ISO 9001 certified, ensuring that every washer batch complies with global quality control standards.
Selection and Procurement Guide
To choose the right DIN 25201 washer, customers should consider:
- Bolt size and fitment
- Applied torque demands
- Environmental factors (temperature, humidity, corrosion risk)
- Installation method
Consulting with professionals or our technical team can save cost and ensure fastener system compatibility. For bulk procurement or custom specifications, contact us to discuss solutions.
We recommend pairing our wedge locking system with high-tensile bolts for maximum performance.
Final Summary & Company Promotion
When mechanical integrity is critical, the DIN 25201 Wedge Locking Washer ensures superior bolt security in critical applications. Built for performance and longevity, this washer exceeds expectations in resistive strength and vibration endurance.
At Flybear Fastener, we stand behind our promise — “Quality First, Customer Foremost.” We are dedicated to supplying high-performance fastener products and providing end-to-end solutions for diverse industry requirements. Whether you need standard or custom locking washers, we are your trusted partner for dependable fastening systems.
Explore our full product catalog or contact us to receive personalized engineering support and competitive quotes.
