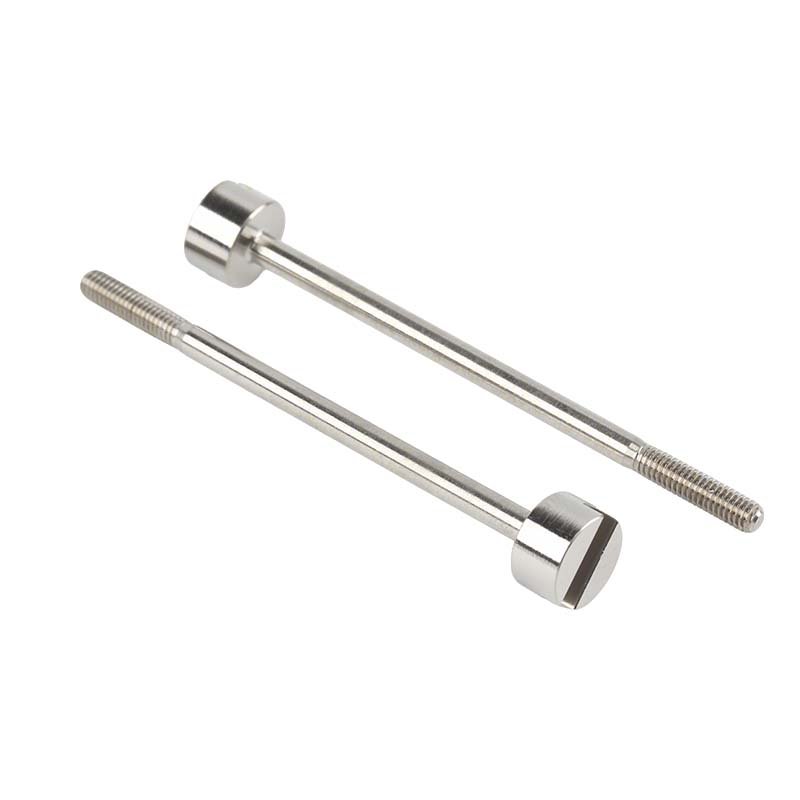

Flybear Custom TC4 Titanium Alloy Screw
Flybear Custom TC4 Titanium Alloy Screw is a high-performance fastening solution developed by Flybear Fastener to withstand extreme environments and deliver unmatched strength-to-weight ratio. Designed for aerospace, medical, chemical, and high-performance equipment applications, this type of screw leverages the unique advantages of titanium alloy TC4 (Ti-6Al-4V) for precision-critical installations.
Product Overview
The Flybear Custom TC4 Titanium Alloy Screw is engineered to combine lightweight properties with high strength and excellent corrosion resistance. As a titanium-based fastener, it offers superior chemical stability and high temperature resistance. TC4 (Ti-6Al-4V) is the most widely used titanium alloy due to its combination of toughness, strength, and corrosion resistance.
These screws are ideal for applications where superior fatigue strength and a low weight are critical, such as satellite technology, automotive racing, marine equipment, and medical devices.
Product Specifications
| Specification Attribute | Value |
|---|---|
| Grade | TC4 (Ti-6Al-4V) Titanium Alloy |
| Type | Hex Socket Head Cap Screw, Custom Type |
| Head Style | Available in pan, countersunk, flange |
| Drive Style | Allen, Torx, Phillips, Custom Available |
| Thread Type | Metric & Inch (UNC, UNF, M) |
| Thread Fit | 6g/6H Class |
| Size Range | M2 – M30 or customized |
| Length | 5mm to 300mm (or specified by customer) |
| Color | Natural Titanium, Anodized Available |
| Packing | Carton + Pallet or Custom Packaging |
Technical Parameters of TC4 Titanium Alloy Screw
| Parameter | Value |
|---|---|
| Strength Grade | Equivalent to Grade 5 Titanium (Approx. 900 MPa Tensile) |
| Certifications | ISO9001, CE, RoHS, ASTM B348, AMS 4928 |
| Operating Temperature | -250℃ to +450℃ |
| Corrosion Resistance | Excellent – against seawater, acids, alkalis |
| Standards Compliance | DIN, ISO, GB, ASTM, ANSI |
Material & Production Process
The core material – TC4 titanium alloy – features 6% aluminum and 4% vanadium, making it a high-strength yet corrosion-resistant material ideal for advanced engineering applications.
Production Process Flow:
Raw Material (Titanium Bar) → Precision Cutting → Forming (Cold Heading / CNC Machining) → Heat Treatment → Thread Rolling → Surface Treatment (Anodizing, Polishing) → Quality Inspection → Packaging.
Each stage is carefully monitored to ensure dimensional accuracy, mechanical performance, and consistent appearance.
Typical Applications and Industry Use
The Flybear Custom TC4 Titanium Alloy Screw is widely used in demanding industries where performance and reliability are key. Common applications include:
- Aerospace structures and satellite assemblies
- Medical implants and dental equipment
- High-performance automotive and motorsports
- Chemical processing and marine environments
- Electronic devices requiring lightweight fasteners
Advantages of Flybear Custom TC4 Titanium Alloy Screw
Core Strengths and Competitive Advantages:
- Superior Material: High-purity TC4 titanium alloy with proven fatigue and tensile strength.
- Corrosion Resistance: Excellent behavior in marine and chemical environments.
- Precision Manufacturing: Tight tolerances and refined threads for secure assembly.
- Aesthetic Finish: Natural titanium sheen or multi-color anodized options.
- Customization: Can be manufactured to client drawings, dimensions, and threading specifications.
- Reliable Availability: Stable inventory offers fast delivery timelines.
- Complete Technical Support and After-Sales Service ensures customer satisfaction.
Inspection and Quality Control
Flybear Fastener employs a rigorous multi-step quality control system to ensure each product meets international specifications and client expectations. Tools and processes include:
- Thread gauges and optical sorting machines
- Pull and tensile testing machines
- Salt spray (corrosion) testing
- Hardness testing and spectrometry
- Environmental compliance verification (RoHS)
- Dimensional & surface defect inspection
All finished goods undergo 100% sampling inspection and are certified under ISO9001 and IATF16949 systems.
Titanium Screw Selection & Purchasing Guide
When selecting a TC4 titanium alloy screw, consider:
- Thread type & size compatibility
- Environmental exposure (corrosive/temperature)
- Load-bearing capacity
- Regulatory requirements for aerospace or biomedical applications
- Custom or standard design needs
For large-scale, high-precision, or industry-specific customizations, it’s best to consult with our sales engineers for optimal solutions and timelines based on application requirements.
Conclusion and Company Promotion
At Flybear Fastener, we are proud to offer industry-leading tightening solutions like the Flybear Custom TC4 Titanium Alloy Screw. We consistently uphold the principle of “Quality First, Customer Foremost” to deliver premium-grade fastener products along with tailored solutions to meet diverse industrial needs.
Our expert team offers full technical consultancy from design to delivery. We encourage clients to contact us today to discuss your project applications and receive customized quotes with technical specification support.
