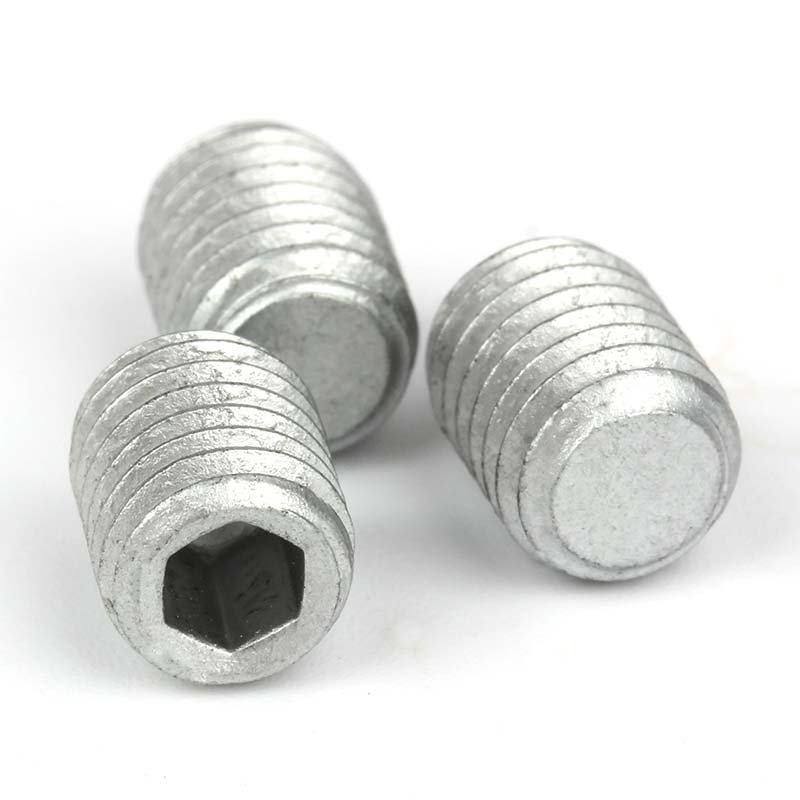

Carbon Steel Hex Socket Flat Point Set Screws
Product Overview
Hex socket flat point set screws are precision-engineered fasteners used to secure an object within or against another object without protruding beyond the surface. Designed with a headless cylindrical body and a hexagonal socket drive, these set screws feature a flat point that provides stability without damaging the mating surface. Manufactured from high-quality carbon steel, these screws are heat-treated for durability and strength. They offer a reliable, discreet locking method in mechanical components and instrumentation assemblies.
These screws are essential in applications requiring flush installations and high torque retention, such as fixing gears, pulleys, and collars to shafts. Their minimal projection design makes them ideal for use where aesthetics or space limitations are crucial.
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Hex Socket Flat Point Set Screws |
| Drive Style | Hex Socket |
| Point Style | Flat Point |
| Head Type | Headless (set screw) |
| Material | Carbon Steel |
| Thread Type | Metric, UNC, UNF |
| Sizes Available | M2 – M24, 4# to 2” |
| Finish / Coating | Black oxide, Zinc plated |
| Standards | DIN 913, ISO 4026, ANSI ASME B18.3 |
Technical Parameters Table
| Parameter | Value |
|---|---|
| Hardness (Rockwell C) | HRC 45-53 |
| Tensile Strength | ≥ 800 MPa |
| Thread Tolerance | 6g |
| Hex Socket Depth | Conforms to DIN/ISO Standard |
| Minimum Thread Engagement | Depends on diameter/thread |
| Temperature Resistance | Up to 250°C |
Material & Manufacturing Process
Hex socket flat point set screws from Flybear Fastener are crafted from high-grade carbon steel, which provides a perfect balance of strength, ductility, and cost-efficiency. The raw material is subjected to precision machining, including cold heading and thread rolling. Post-forming, the screws undergo heat treatment to achieve the desired mechanical properties and wear resistance.
The surface treatment options include black oxide and zinc plating, which enhance corrosion resistance while maintaining a clean, sleek appearance. Each batch of screws is meticulously inspected to ensure tight tolerance control and flawless threading.
Typical Applications & Industry Use Cases
Flat point set screws are widely utilized in:
- Automotive assemblies such as locking collars and synchronizer rings
- Industrial machinery and gearboxes
- Electronic housings and instrument enclosures
- Robotics and automation systems
- Aerospace components where minimal surface interference is critical
- Marine equipment with zinc-plated variants providing reasonable corrosion resistance
They are especially favored in scenarios where the screw needs to be fully embedded below the outer surface, offering both security and a clean appearance.
Product Advantages & Competitive Edge
Precision You Can Trust
- Superior Material Quality: Made from premium carbon steel, known for its high tensile strength and durability.
- Advanced Manufacturing: With tight thread tolerances and hex socket integrity, ensuring optimal torque application with minimal stripping risk.
- Enhanced Surface Treatments: Black oxide or zinc plated versions improve corrosion resistance while reducing wear.
- Customizability: Available in non-standard sizes, materials, and finishes according to drawings or samples.
- Stock Availability: Large inventory enables timely delivery for both standard and custom orders.
- Comprehensive Service: Full technical and after-sales support, ensuring peace of mind throughout the procurement and use process.
Quality Control & Testing Procedures
At Flybear Fastener, total quality management governs our production and inspection process. Every lot of hex socket flat point set screws undergoes:
- Dimensional inspection using precision gauges
- Tension and shear tests to confirm mechanical properties
- Surface finish testing
- Thread gauging following ISO and ANSI tolerances
- Salt-spray testing for corrosion resistance on coated variants
By adhering to strict QA procedures, we ensure each fastener meets or exceeds customer expectations and applicable international standards.
Selection & Procurement Guide
Choosing the right set screw starts with identifying the:
- Required diameter and thread pitch
- Material grade and coating depending on the environment
- Drive type, which in this case is hex socket for optimal torque versatility
- Point style – flat points are ideal for applications without surface indentation.
Our team at Flybear Fastener is ready to assist you through every step of your purchasing journey. Whether you’re sourcing for MRO operations or OEM production lines, we provide competitive pricing, custom solutions, and rapid delivery timelines.
Conclusion & Company Promotion
Choosing flat point set screws is all about securing reliability and performance in a discreet fastening method. At Flybear Fastener, we pride ourselves on delivering exceptional quality fastener products with unmatched support and professionalism.
Our experienced team is well-positioned to offer complete industry solutions tailored to your application needs. Whether you require standard parts from stock or customized specifications in large volumes, we are your trusted partner in fastening excellence.
We always adhere to the philosophy of “quality first, customer foremost,” and are committed to providing customers with high-quality fastener products and one-stop solutions. Feel free to contact us today for pricing, samples, or technical consultation.
