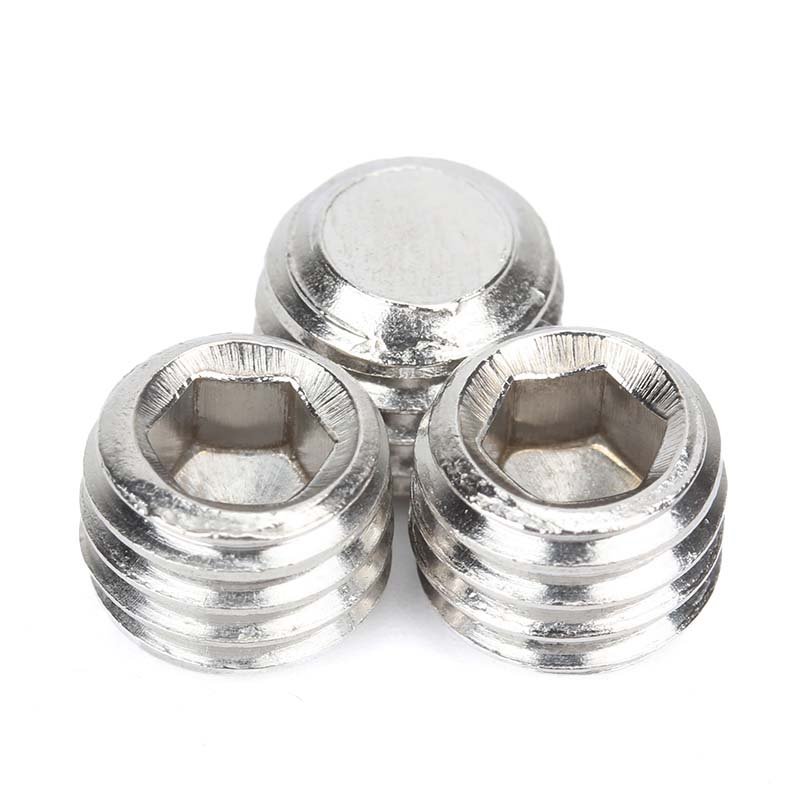

Stainless Steel Hex Socket Set Screws with Flat Point
Product Overview
Stainless Steel Hex Socket Set Screws with Flat Point are an essential type of fastener commonly used in applications where a flush surface is desired once the screw is installed. These screws are designed with a hexagonal socket drive and a flat point tip, providing a strong, secure hold without damaging the mating surface. Made from corrosion-resistant stainless steel, these screws are ideal for a wide range of industrial and mechanical applications.
At Flybear Fastener, we offer high-precision stainless steel hex socket set screws tailored to industry demands, ensuring durability, reliability, and extended service life.
Product Specification Table
| Parameter | Detail |
|---|---|
| Product Name | Hex Socket Set Screws with Flat Point |
| Drive Type | Internal Hex (Allen) |
| Point Type | Flat |
| Thread Type | Metric/UNC/UNF |
| Material | Stainless Steel 304 / 316 |
| Size Range | M2 – M24 / #2-56 – 1″-8 |
| Length Options | 3 mm – 60 mm |
| Finish | Plain / Passivated / Black Oxide |
| Standard Compliance | DIN 913 / ISO 4026 / ANSI B18.3 |
Technical Data Sheet
| Property | Value |
|---|---|
| Tensile Strength | ≥ 550 MPa (304), ≥ 600 MPa (316) |
| Yield Strength | ≥ 240 MPa (304), ≥ 300 MPa (316) |
| Hardness | 80–100 HV |
| Torque Rating | Dependent on size (Available upon request) |
| Temperature Resistance | Up to 870°C (316 Stainless Steel) |
| Corrosion Resistance | Excellent in marine & chemical settings |
Material and Manufacturing Process
Our Stainless Steel Hex Socket Set Screws with Flat Point are primarily manufactured from 304 or 316-grade stainless steel, known for their outstanding corrosion and oxidation resistance. The production process includes:
- Material sourcing and quality inspection
- Cold forging & thread rolling for strength and precision
- CNC machining for accurate flat point shaping
- Heat treatment for increased hardness (on request)
- Surface finishing for enhanced durability
- 100% dimensional and visual inspection
This advanced manufacturing ensures consistent performance even in demanding environments.
Common Applications and Industry Use
These hex socket flat point set screws are widely used in the following industries and applications:
- Electronics & Telecommunications: For circuit board mounting
- Automotive: Used in transmissions and assemblies
- Aerospace: For vibration-sensitive parts
- Industrial Machinery: Positioning components without surface damage
- Marine Equipment: Due to stainless steel’s corrosion resistance
- Medical Devices: Where clean, flush fastening is essential
Competitive Advantages
Our hex socket set screws stand out in the market due to:
- Premium Material Selection: Only high-quality 304 and 316 stainless steel is used
- Precision Engineering: Tight tolerance control ensures a secure fit
- Advanced Surface Finishing: Resistance to rust, corrosion, and wear
- Customization Available: Tailor-made sizing and finishing according to your drawings or samples
- Sufficient Inventory & Fast Delivery: Over 10,000 SKUs in stock
- Dedicated Support: Prompt technical consultation and after-sale service
Quality Control and Inspection
At Flybear Fastener, product quality is a top priority. Every batch of stainless steel hex socket set screws undergoes:
- Raw material verification (chemical & mechanical test)
- Dimensional checks using micrometers and thread gauges
- Salt spray and corrosion resistance tests
- Hardness and tensile testing
- Traceable lot inspection reports
Our dedicated QC team ensures each order meets international standards and client specifications.
Selection and Purchasing Guide
Choosing the right Stainless Steel Hex Socket Set Screws with Flat Point depends on:
- Application load requirements
- Corrosive exposure and environmental conditions
- Thread compatibility with pins or receiving holes
- Required length and head clearance settings
We recommend consulting with our engineering team to select the ideal fastener type. Visit our website to explore our full line of tightening and fastening components.
Conclusion and Company Introduction
The Stainless Steel Hex Socket Set Screws with Flat Point offer the ideal balance of strength, corrosion resistance, and durability for modern applications. Whether your need is for industrial machinery, electronics, or specialty automotive parts, you can trust Flybear Fastener to deliver products that exceed expectations.
We always follow the principle of “Quality First, Customer Supreme” and are committed to offering customers high-grade fastener products and one-stop fastening solutions. Explore more products on our website and contact us for tailored industry solutions and competitive quotations.
