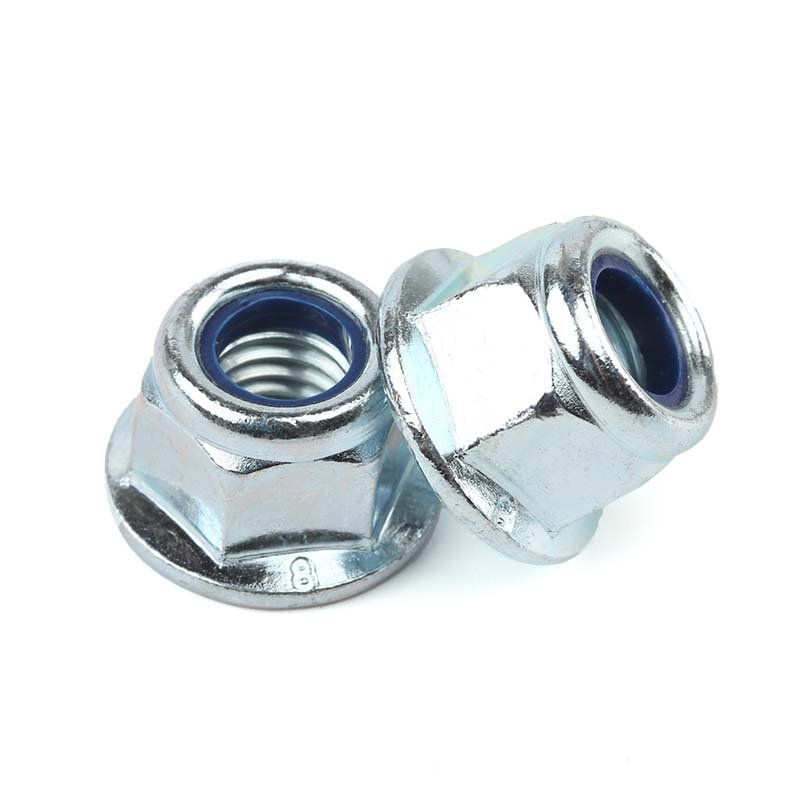

Carbon Steel Nylon Insert Hex Lock Nut with Flange DIN6926
Product Overview
Nylon insert hex lock nut with flange, commonly referred to simply as a flange lock nut, is an essential fastener known for its self-locking characteristics provided by a nylon insert. This nut is manufactured in accordance with DIN 6926 standards, ensuring precision and conformity to industry norms. It features a wide flange at one end that distributes the load and resists loosening caused by vibration and torque. The locking mechanism is created by a nylon insert ring that grips the bolt threads when tightened, preventing back-off.
These nuts are primarily made from high-quality carbon steel, and depending on the application requirements, they may come with different surface finishes such as zinc plating for enhanced corrosion resistance. Due to their secure locking and robust design, nylon insert hex lock nuts with flange are widely used in automotive, engineering, heavy machinery, and construction applications.
Their structure, combined with the self-locking feature, makes them particularly effective in dynamic environments where fastener integrity is crucial.
Product Specification Table
| Standard | DIN 6926 |
|---|---|
| Product Name | Nylon Insert Hex Lock Nut with Flange |
| Thread Type | Metric |
| Sizes Available | M5 – M20 |
| Material | Carbon Steel |
| Finish | Plain, Zinc Plated, Hot Dip Galvanized |
| Locking Type | Nylon Insert |
| Flange Type | Serrated / Non-serrated |
| Application | Vibration-resistant assemblies |
Technical Parameters
| Size (Nominal Diameter) | Pitch (mm) | Width Across Flats (mm) | Flange Diameter (mm) | Height (mm) |
|---|---|---|---|---|
| M6 | 1.0 | 10 | 14 | 7.6 |
| M8 | 1.25 | 13 | 17.9 | 9.2 |
| M10 | 1.5 | 17 | 21 | 11.8 |
| M12 | 1.75 | 19 | 24 | 14.4 |
Note: Other sizes are available upon request.
Material and Manufacturing Process
The nylon insert hex lock nuts with flange offered by Flybear Fastener are made from high-grade carbon steel. This material provides excellent strength and tensile properties suitable for various industrial applications. The sophisticated production process includes:
- Cold forming the hex structure and flange.
- Tapping internal threads with high precision.
- Press-fitting nylon inserts to ensure locking functionality.
- Heat treatment (if necessary) for enhanced mechanical properties.
- Surface treatment (zinc plating, hot-dip galvanizing) to ensure corrosion resistance.
Typical Applications and Industries
These locking flange nuts are widely used in industries where persistent vibration could cause common nuts to loosen over time. Typical applications include:
- Automotive assembly and aftermarket
- Machinery and heavy-duty equipment
- Renewable energy installations (wind turbines, solar tracking systems)
- Agricultural and construction vehicles
- Electrical enclosures and panel fastening
Their ability to resist loosening without the need for external locking washers simplifies installation and reduces the risk of fastener failure.
Features, Benefits, and Competitive Edge
Material Selection: Premium carbon steel for high strength and reliability.
Precision Manufacturing: Tight thread tolerances ensure compatibility with corresponding bolts and screws, preventing loosening under stress.
Advanced Surface Treatment: Anti-corrosion plating enhances product lifespan in harsh environments.
Customization: Ability to produce in bulk according to customer drawings or samples ensures that specific project requirements are met.
Available Inventory & Fast Shipping: We maintain a large stock of standard sizes for immediate dispatch worldwide.
Excellent Support & Service: From pre-sales consulting to post-sale support, our team ensures quick and detailed technical assistance.
Testing and Quality Assurance
At Flybear Fastener, quality is always our top priority. Every batch of flange lock nuts undergoes rigorous in-house testing to validate:
- Thread conformity (Go/No-Go gauges)
- Material hardness and strength
- Corrosion resistance (salt spray test)
- Torque retention and vibration resistance
Our ISO-certified quality assurance processes ensure that all fasteners meet or exceed DIN 6926 specifications.
Selection and Purchasing Guide
Choosing the right nylon insert hex lock nut with flange depends on factors such as application type, load conditions, environmental exposure, and thread compatibility. We recommend:
- Selecting appropriate material and finish based on exposure (e.g., hot-dip galvanizing for outdoor use).
- Confirming thread pitch and flange size alignment with mating components.
- Consulting with our support engineers for custom or high-vibration environments.
To inquire about bulk orders, pricing, or technical guidance, please contact us today—our team is ready to assist you.
Additional Product Highlights
- Nylon inserts are replaceable and chemical-resistant.
- Flange helps in load distribution—eliminating need for washers.
- Ideal for frequent assembly/disassembly tasks.
- Performs exceptionally in compact or limited-access applications.
