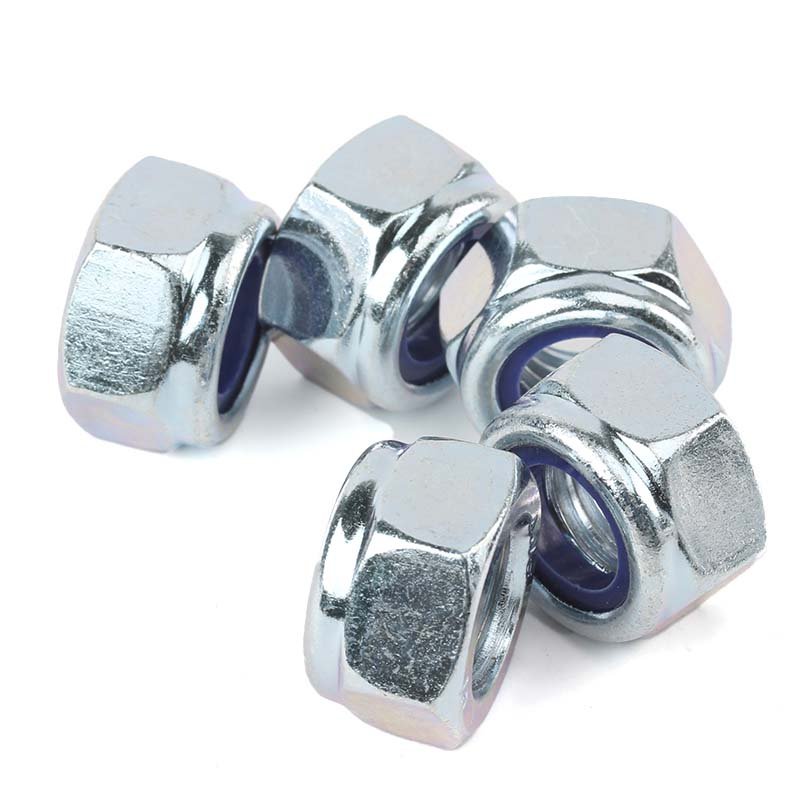

Carbon Steel Nylon Insert Hex Thin Lock Nut DIN985
Nylon Insert Hex Thin Lock Nut: Secure and Reliable Fastening Solution
Nylon Insert Hex Thin Lock Nut is a high-performance fastening component designed according to standard DIN985. It is specially engineered with a nylon insert that ensures resistance against loosening when exposed to vibrations and dynamic loads. This nut is commonly made from Grade 10 carbon steel, which offers high tensile strength and mechanical load endurance. The nylon locking element adds enhanced grip, making these nuts an excellent choice in critical engineering applications.
At Flybear Fastener, we provide customized, high-quality Nylon Insert Hex Thin Lock Nuts that ensure optimal performance in a wide array of industries.
Product Overview
Nylon Insert Hex Thin Lock Nuts, also known as prevailing torque nuts or lock nuts, are designed with a nylon collar located at the end of the nut. This insert deforms elastically to grip the threads of the mating part, maintaining tension and preventing the nut from backing off unintentionally.
These fasteners are thinner than standard lock nuts, which helps in situations where limited space and tight tolerances are required. The product complies with DIN985 standards and is ideal for precise applications in the automotive, machinery, electronics, and aerospace industries.
Product Specification Table
| Parameters | Specification |
|---|---|
| Product Name | Nylon Insert Hex Thin Lock Nut |
| Standard | DIN985 |
| Material | Carbon Steel |
| Grade | 10 Class |
| Size Range | M3 – M48 |
| Surface Coating | Zinc-Plated, Black Oxide, Dacromet |
| Thread Type | Metric |
| Locking Element | Nylon Insert |
| Shape | Hexagonal |
| Thickness | Thin Profile |
Technical Data
| Property | Value |
|---|---|
| Tensile Strength | ≥ 1000 MPa |
| Hardness | 320 – 380 HV |
| Thread Tolerance | 6H |
| Operating Temperature | -40°C to +120°C (limited by nylon) |
| Coefficient of Friction | 0.2 – 0.3 |
| Vibration Resistance | High |
Material and Manufacturing Process
The Nylon Insert Hex Thin Lock Nut is made from high-grade carbon steel that complies with ISO 898-2 mechanical property requirements. Grade 10 carbon steel is selected due to its strong tensile and yield characteristics, which are essential in high-stress applications.
The manufacturing process includes:
- Raw material inspection
- Cold forging of the hex body
- Machining of threads with tight tolerances
- Nylon ring insertion using automated hydraulic presses
- Surface treatment (zinc plating or black oxide)
- Final dimensional and torque testing
These processes ensure the nut meets or exceeds the DIN985 standard and provides consistent performance in demanding environments.
Application Industries and Use Cases
Nylon Insert Hex Thin Lock Nuts are widely used in sectors that demand resistance against vibrations and loosening:
- Automotive assembly (engine mounts, suspension systems)
- Aerospace (avionics panels, structural joints)
- Electrical and electronics (control panels, enclosures)
- Construction machinery (moving parts, rotating assemblies)
- Renewable energy (solar panels, wind turbines)
- Rail transport and marine applications
Its compact size combined with excellent locking functionality makes it ideal when internal space is constrained or close-fitting is needed.
Competitive Advantages of Nylon Insert Hex Thin Lock Nut
Our product stands out for several reasons:
Chosen Material Quality
We use premium Grade 10 carbon steel, offering high tensile strength and consistent performance under stress.
Precision Manufacturing
State-of-the-art CNC machining delivers tight thread tolerances and sleek finishes, ensuring easy and robust assembly.
Advanced Surface Treatment
Multiple surface coatings, including Dacromet and zinc plating, are available, offering corrosion and rust resistance for long-term performance.
Strong Customization Capabilities
Custom sizes, threading, plating, and packaging can be achieved according to client drawings or samples. Fast prototyping is available.
Sufficient Inventory
Large-scale warehousing ensures rapid order fulfillment and global on-time delivery.
Professional Technical Support
Experienced engineers and a dedicated support team offer 24/7 consultation services and after-sales assistance.
Quality Inspection and Control
We carry out rigorous quality checks at every stage of production. Our in-house QA laboratory conducts:
- Hardness testing (Rockwell and Vickers)
- Thread gauging (GO/NO-GO plug testing)
- Torque resistance analysis
- Salt spray tests for coating durability
- Visual and dimensional inspections
Our adherence to ISO 9001 quality management system and continuous improvement practices ensure that you receive products that meet international standards.
Selection Tips and Purchasing Guide
When selecting a Nylon Insert Hex Thin Lock Nut, consider the following:
- Confirm compatibility with the mating bolt (thread pitch, diameter)
- Choose the correct grading (Class 10 recommended for high-stress environments)
- Verify working temperature range—nylon inserts fail at temperatures beyond 120°C
- Decide on the type of plating—zinc-plated for general corrosion protection, Dacromet for heavy-duty exterior applications
- Request test certificates for engineering and OEM usage
It is advisable to work with knowledgeable suppliers to ensure application-specific requirements are met. Bulk purchase discounts and custom labeling are available.
Conclusion and Company Value Proposition
At Flybear Fastener Fastener, we prioritize integrity, quality, and innovation. “We always adhere to the principle of ‘Quality First, Customer Foremost’, striving to provide customers with high-performance fastener products and comprehensive one-stop solutions.”
We invite you to explore our wide range of lock nuts and precision fasteners. For specific project needs, custom specifications, or technical consultation, feel free to contact us. Our engineers and sales team are ready to support your industrial goals.
We look forward to being your trusted partner in long-term fastening component supply.
