Parallel Pins with Internal Thread
Parallel Pins with Internal Thread are essential components in precision assembly applications, offering strong axial fixing and easy integration with threaded fasteners. These pins, often used in labor-intensive or high-vibration environments, provide superior alignment and holding force. As internal-threaded fastening components, they enable additional mechanical connections by allowing screw insertion, making them ideal in engineering applications that require removable or adjustable positioning of two or more parts.
Product Overview

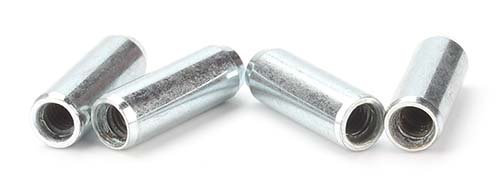

Parallel Pins with Internal Thread are cylindrical locating or fastening elements featuring a smooth outer surface and a threaded hole within. Commonly made from stainless steel or alloy steel, these pins serve dual purposes: structural alignment and entry points for screws. With exceptional dimensional stability and the ability to resist shear forces, they are pivotal in applications ranging from automotive industries to precision medical devices.
At Flybear Fastener, our Parallel Pins with Internal Thread are manufactured with high-precision machining techniques, ensuring reliable fits and long-lasting performance under dynamic loads.
Product Specifications
| Specification | Description |
|---|---|
| Diameter Range | 2 mm – 20 mm |
| Length Range | 10 mm – 120 mm |
| Thread Type | Internal ISO Metric Thread (M) |
| Thread Sizes Available | M2 – M12 |
| Tolerance Class | H8 outer diameter |
| Material Options | Stainless Steel 304, 316, Alloy Steel C45 |
Technical Parameters
| Parameter | Values/Options |
|---|---|
| Surface Finishes | Zinc Plated, Black Oxide, Plain |
| Conforms To Standards | ISO 8734, DIN EN ISO 8734, DIN 7979 |
| Certifications | RoHS, REACH, CE, ISO9001 |
Material Introduction & Production Process
Our Flybear Fastener Parallel Pins with Internal Thread are crafted from high-grade materials such as:
- Stainless Steel 304/316: High corrosion resistance
- High-Strength Alloy Steel (e.g., C45, 40Cr): Exceptional tensile loads
Our manufacturing process ensures precision and durability:
Raw Material → Cold Forming/Hot Forging → Precision CNC Threading → Heat Treatment → Surface Finishing → Quality Inspection → Packaging
This streamlined and controlled production flow guarantees optimal quality and consistency.
Industries & Applications
Parallel Pins with Internal Thread are used across diverse sectors:
- Automotive: Engine blocks, assemblies
- Aerospace: Structural brackets in aircraft interiors
- Manufacturing Machinery: Alignment and fixing parts
- Robotics: Precision position controls
- Medical Equipment: Detachable and secure fixtures
Their ability to be fixed and removed easily makes them ideal for maintainable structures and systems.
Core Keyword Optimized Section: Advantages of Parallel Pins with Internal Thread
Parallel Pins with Internal Thread offer several distinct benefits:
Material Selection
We use only premium-grade stainless steel and alloy steel, combining strength and corrosion resistance for ideal performance in harsh environments.
Precision Engineering
Dimensional tolerances are tightly controlled using advanced CNC machines, ensuring consistent fit and function.
Surface Excellence
Each pin receives uniform surface treatment, aiding in anti-corrosion and enhanced durability.
Customization Ready
With the ability to tailor the length, diameter, thread type, and material based on your drawings or samples, we offer flexible OEM/ODM services.
Inventory & Delivery
Backed by a fully stocked warehouse, we ensure rapid shipment and minimal lead times to meet tight project deadlines.
Reliable Service
Our experienced team provides comprehensive support and guidance throughout your ordering process with immediate post-sale assistance.
Inspection and Quality Control
Flybear Fastener ensures uncompromised quality through stringent in-house testing protocols:
- Dimensional Inspection: Thread Gauges, Micrometers
- Strength Testing: Tensile Test Machines
- Environmental Testing: Salt Spray Chambers, ROHS compliance
- Hardness Testing: Rockwell & Vickers Hardness Testers
- Visual Sorting: Optical Sorting Machines
- Certification: ISO 9001, IATF16949 certified facilities
Each batch of products undergoes a 100% inspection rate and is accompanied by material conformity and inspection reports.
Selection & Procurement Guide
When selecting Parallel Pins with Internal Thread, consider the following:
- Application Load: Choose suitable strength grade (e.g. 8.8 or A2-70)
- Environmental Conditions: Stainless steel for corrosion-prone or outdoor usage
- Installation Interface: Match diameter and thread with counterpart hole and screw
- Mounting Tolerances: Use H8 tolerance for secure fitting
For custom requirements, provide technical drawings or parameters for tailored solutions.
Conclusion & Company Promotion
At Flybear Fastener, we are committed to excellence and innovation. We consistently deliver superior fastener products and highly adaptable engineering solutions to meet industry-specific challenges.
Our expert team is always available to assist you throughout the design, specification, and procurement stages. For technical consultation and pricing, please contact us today.
We always adhere to the principle of “Quality First, Customer Foremost”, striving to offer value-driven fastener products and one-stop fastener solutions.
