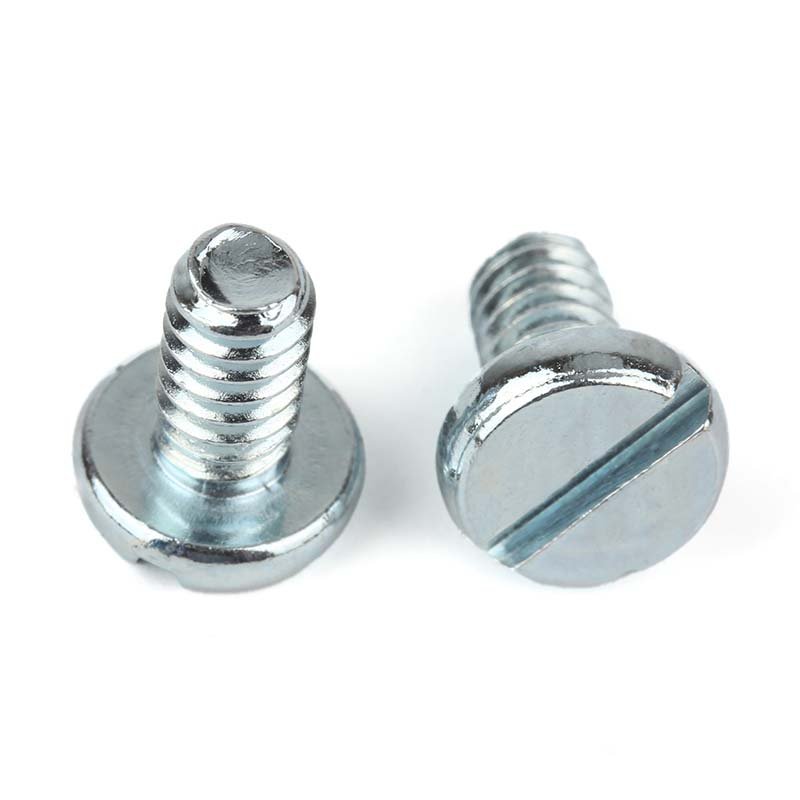

Carbon Steel Slotted Pan Head Screws
Product Overview
Slotted Pan Head Screws are a classic and essential fastening solution used across various industries. Designed with a rounded, slightly domed head and a straight slot for flat-blade screwdrivers, these screws offer simple, cost-effective installation. Manufactured from durable carbon steel, they provide excellent mechanical strength, easy machinability, and compatibility with a range of surface coatings for corrosion resistance.
Product Specifications
| Specification | Detail |
|---|---|
| Head Type | Pan Head |
| Drive Type | Slotted (Flat) |
| Material | Carbon Steel |
| Thread Type | Full Thread / Partial Thread (optional) |
| Standards | DIN 85 / ISO 1580 / ANSI B18.6.3 |
| Size Range | M2 – M10 / #4 – 3/8″ |
| Length Range | 4mm – 8mm / 3/16″ – 4″ |
| Coating Options | Zinc Plated, Black Oxide, Nickel Plated |
Technical Parameters
| Parameter | Value |
|---|---|
| Tensile Strength | ≥ 600 MPa (Grade 4.8 Carbon Steel) |
| Thread Tolerance | ISO 6g / ANSI 2A |
| Head Height Tolerance | ±0.1mm |
| Torque Performance | As per DIN 85 standard |
| Surface Hardness | Optional hardening available |
| Corrosion Resistance | 96–240 hours salt spray (coating dependent) |
Material & Production Process
These screws are made from high-quality carbon steel, which is widely used for its excellent strength-to-cost ratio. The manufacturing process involves:
Cold heading to form the screw body and head
Slot cutting to create a precise straight slot
Thread rolling for high consistency and clean finishes
Heat treatment (if required) for mechanical enhancement
Surface treatment such as zinc or black oxide plating
Final inspection and packaging
All stages are tightly controlled to ensure the best results in terms of precision, durability, and reliability.
Typical Applications and Use Cases
Slotted Pan Head Screws are commonly found in:
Electrical terminals and switchgear
Household appliances
Vintage or retro-style equipment
Sheet metal and plastic components
Wood-to-metal assembly
Decorative hardware with traditional aesthetics
The slotted drive makes them suitable for manual installation or applications where over-torquing must be avoided.
Product Advantages & Competitive Features
Carbon Steel Slotted Pan Head Screws for Reliable Assembly
At Flybear, we focus on combining quality with versatility for all-purpose fastening needs.
Material Excellence: Made from industrial-grade carbon steel
Precision Engineering: Accurate thread pitch, clean head slot, and uniform dimensions
Advanced Coating Options: Zinc plating for corrosion resistance; black oxide for appearance
Customization Ready: Tailored length, threading, and slot size upon request
Large-Scale Availability: Bulk inventory and short lead times
After-Sales Support: Dedicated engineers for technical inquiries and usage support
Company Quality Assurance & Testing
All fasteners are produced in accordance with ISO 9001 and IATF 16949 certifications. Our strict inspection protocol includes:
Dimensional measurement using GO/NO-GO gauges
Thread integrity inspection
Salt spray and coating thickness testing
Slot depth and head tolerance control
Visual inspection under magnification
Selection & Ordering Guide
When choosing Slotted Pan Head Screws, consider:
Screw size compatibility with the workpiece
Required coating and corrosion environment
Thread pitch and tolerance
Flat-head screwdriver accessibility in assembly area
Batch quantity and delivery schedule
We also supply customized packaging and labeling upon request to support OEM and B2B clients.
Summary & Brand Commitment
We always adhere to the principle of “quality first, customer foremost,” and are committed to delivering high-quality fastener products and one-stop solutions to customers across industries. Flybear Fastener offers dependable fastening systems that meet global standards. For technical support or a quotation tailored to your project, feel free to contact us.
