Stainless Steel Hexagon Flange Nuts
Stainless steel hexagon flange nuts are a critical type of fastener used across a variety of industrial and construction applications. Designed with an integrated flange that distributes pressure, these nuts offer increased holding power and simplify load-bearing operations. Their corrosion-resistant stainless steel construction makes them highly durable and ideal for both indoor and outdoor installations.
Product Overview

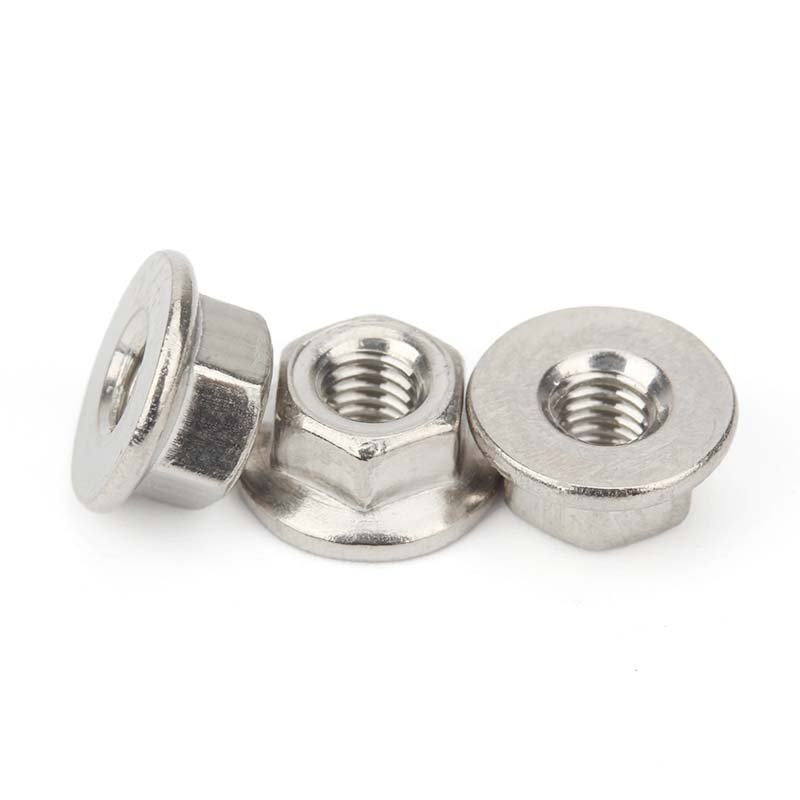

Stainless steel hexagon flange nuts are characterized by a hexagonal shape and a wide flange at one end, which acts as a built-in washer. This design feature reduces the risk of damage to the parts being fastened and ensures even distribution of clamping force. The self-locking capability, especially in serrated flange versions, adds mechanical reliability under vibrations or dynamic loads.
At Flybear Fastener, we manufacture an extensive range of hex flange nuts made from high-quality stainless steel materials to meet the stringent standards of global industries.
Product Specifications
| Feature | Specification |
|---|---|
| Product Name | Stainless Steel Hexagon Flange Nut |
| Standard | DIN 6923, ISO 4161, JIS B1190 |
| Material | Stainless Steel (A2-70, A4-80) |
| Thread Type | Metric / UNC / UNF |
| Diameter Range | M5 – M20, 1/4” – 1” |
| Height | Customized or standard dimensions |
| Flange Type | Plain / Serrated |
| Coatings | Plain finish / Passivated |
Technical Parameters
| Size (mm) | Pitch (mm) | Width Across Flats (mm) | Flange Diameter (mm) |
|---|---|---|---|
| M6 | 1.0 | 10.0 | 14.6 |
| M8 | 1.25 | 13.0 | 17.9 |
| M10 | 1.5 | 17.0 | 21.8 |
| M12 | 1.75 | 19.0 | 26.0 |
| M16 | 2.0 | 24.0 | 30.8 |
Material Introduction & Production Process
Our stainless steel hexagon flange nuts are commonly engineered using grades such as A2-70 or A4-80 stainless steel, offering high tensile strength, resistance to atmospheric corrosion, and suitability for marine environments.
Production steps include:
- Raw material bar cutting
- Cold/Hot forging (depending on size)
- Thread rolling or tapping
- Flange shaping (with or without serrations)
- Heat treatment for strength enhancement
- Surface finishing such as passivation or polishing
- 100% dimensional and visual inspection
Applications in Key Industries
These flange nuts are widely employed in:
- Automotive industry (engine mounts, suspension)
- Construction hardware (steel frames, HVAC)
- Machinery equipment fastening
- Electrical systems and enclosure assemblies
- Marine applications requiring corrosion resistance
Being vibration-resistant and able to secure loads without the need for separate washers, stainless steel hex flange nuts are indispensable components in high-performance assemblies.
Hexagon Flange Nut Advantages and Competitive Edge
Our stainless steel flange nuts stand out in the market for the following reasons:
Premium Material Selection
We select corrosion-resistant stainless steel such as A2 and A4, known for their performance in harsh environments.
Precision Manufacturing
Produced using CNC-controlled equipment, ensuring tight thread tolerance and excellent flange flatness.
Advanced Surface Treatment
Passivated to enhance longevity and anti-rust functionality, ideal for outdoor and marine industries.
Excellent Customization Capabilities
Customized dimensions, threads, and serration profiles are available upon request.
Reliable Inventory and Timely Delivery
We maintain large inventories to fulfill urgent or bulk requirements promptly.
Comprehensive After-Sale Support
Our engineering team provides instant technical support and thorough after-sales service.
Company Testing & Quality Control
At Flybear Fastener, quality assurance is integrated throughout the manufacturing process. Our inspection procedures include:
- Dimensional checks using thread gauges and calipers
- Hardness testing
- Salt spray corrosion testing (according to ISO 9227)
- Torque-tension validation testing
- ROHS & REACH compliance verification
Every lot of stainless steel hexagon flange nuts is supplied with material certificates and full traceability records.
Flange Nut Selection & Buying Guide
When selecting flange nuts, consider:
- Thread type and size: Match with mating bolts
- Environment conditions: Choose A4 stainless for chloride-rich or marine applications
- Serrated or non-serrated: Use serrated types to resist loosening from vibration
- Load and torque requirements: Ensure mechanical compatibility
For large-scale or customized orders, contact us to discuss quantities, delivery times, and technical specifications.
Conclusion: Why Choose Flybear Fastener?
We have been committed to manufacturing and supplying best-in-class fastening solutions for over a decade. Whether you are in automotive assembly, structural engineering, or marine construction, our products offer performance you can trust.
We always adhere to the philosophy of “Quality First, Customer Foremost,” and are dedicated to delivering high-performance fastener products and one-stop fastening solutions that exceed customer expectations. Browse our complete catalog or contact us to request a quote or discuss your unique requirements.
