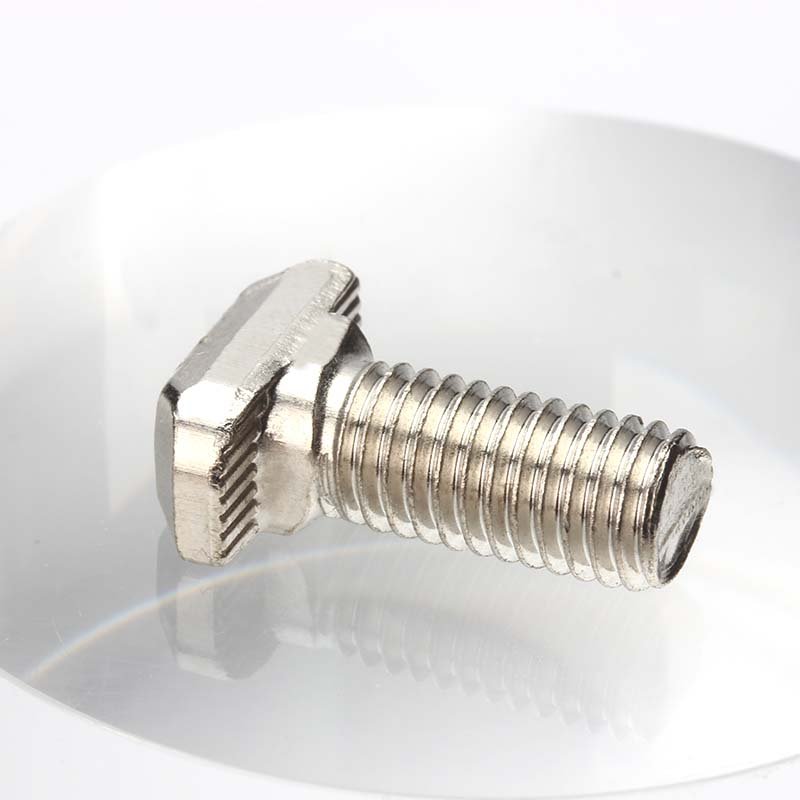

Carbon Steel T-Shaped Nickel-Plated Bolts
Product Overview
T-shaped nickel-plated bolts are high-performance fastening components designed for easy insertion into T-slots and channels in structural framing systems. Their T-shaped head allows for quick positioning and secure anchoring, making them especially useful in modular assembly lines, aluminum extrusion systems, and solar mounting structures. With a nickel-plated surface and carbon steel body, these bolts combine strength, corrosion resistance, and excellent durability in both indoor and outdoor environments.
Product Specification Table
| Specification | Details |
|---|---|
| Product Name | T-Shaped Nickel-Plated Bolts |
| Material | Carbon Steel |
| Head Type | T-Shaped |
| Thread Type | Metric / UNC |
| Surface Finish | Nickel Plated |
| Size Range | M6–M48 |
| Standards | DIN 186/ Customizable |
| Installation Method | Slide-in and tighten with wrench |
Technical Parameters Table
| Parameter | Value |
|---|---|
| Tensile Strength | ≥ 700 MPa |
| Shear Strength | ≥ 450 MPa |
| Surface Hardness | ≥ HRC 28 |
| Thread Tolerance | 6g / 2A |
| Coating Thickness | ≥ 5 μm (Nickel) |
| Corrosion Resistance | ≥ 120 hrs Salt Spray Test |
Material Introduction & Manufacturing Process
These bolts are manufactured using high-grade carbon steel, which ensures mechanical strength and impact resistance. The surface is treated with a uniform nickel plating process to enhance corrosion resistance and surface appearance. The production process includes:
Raw material inspection and cutting
T-shape head forming through forging or CNC machining
Thread rolling or cutting
Electrolytic nickel plating for anti-corrosion performance
Dimensional and thread inspection
Packaging and labeling
The precise shape of the T-head and uniform nickel finish guarantee ease of use and long service life in modular structures.
Common Applications and Use Cases
T-shaped nickel-plated bolts are commonly used in:
Aluminum extrusion frame systems
Solar panel mounting systems
CNC machine beds and enclosures
3D printer structural frames
Automated production lines and workstations
Furniture and modular shelving units
These bolts are valued for their quick installation capability and reliable torque performance in repetitive assembly environments.
Product Advantages & Competitive Features
Advantages of Nickel-Plated Carbon Steel T-Bolts
Superior Material: Made from durable carbon steel for high strength and toughness.
Precision Manufacturing: Accurate T-head geometry and thread conformity ensure a perfect fit into slots and channels.
Nickel Plating Protection: Provides a shiny, corrosion-resistant surface ideal for indoor and light outdoor use.
Customization Available: Sizes, threads, and plating thicknesses can be customized for project needs.
Ample Inventory: Popular sizes are readily stocked for fast delivery.
Responsive Support: Drawings, load capacity charts, and technical guidance are available for customer requirements.
Company Inspection & Quality Assurance
At Flybear Fastener, we implement robust quality control measures to ensure each product meets international standards:
Thread gauge testing and go/no-go verification
Plating thickness measurement and adhesion testing
Tensile and shear load testing
Salt spray testing to confirm corrosion resistance
Batch traceability and quality reports upon request
Our factory adheres to ISO 9001 and IATF 16949 standards for manufacturing excellence.
Selection & Purchasing Guide
When selecting T-shaped nickel-plated bolts, consider the following criteria:
Slot size and bolt head compatibility
Required bolt diameter and thread type
Load capacity and installation torque
Environmental exposure and coating needs
Quantity needed for assembly line production
Conclusion & Company Promotion
Our fastener products are engineered for performance and precision. Whether you’re working on solar mounting systems, aluminum profiles, or custom automation setups, our T-shaped nickel-plated bolts ensure secure fastening and time-saving assembly.
We always uphold the principle of “Quality First, Customer Supreme”, and are committed to providing customers with high-quality fastener products and one-stop solutions. Feel free to contact us to explore more solutions or request a quote.
