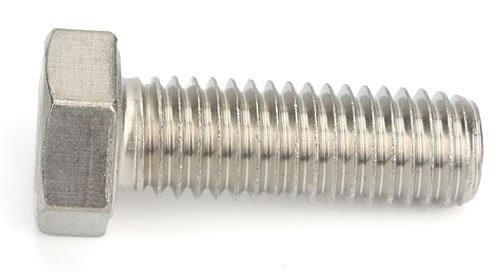

A193 B8M Stainless Steel Hexagon Bolt
A193 B8M stainless steel hexagon bolt is a premium-grade fastener designed for high-performance applications where corrosion resistance and mechanical strength are essential. Manufactured from austenitic stainless steel, this bolt meets ASTM A193 Grade B8M specifications and is widely used across industries demanding chemical resistance and long-term reliability.
Product Overview
The A193 B8M stainless steel hexagon bolt is crafted from Type 316 stainless steel, known for its superior resistance to chloride corrosion and its strength in high-temperature environments. These bolts are hexagonal in shape, allowing for optimal fastening torque and ease of installation with standard tools. They are commonly used in marine, chemical processing, and offshore applications due to their exceptional durability and resistance properties.
Product Specification Table
| Item | Details |
|---|---|
| Product Name | A193 B8M Stainless Steel Hexagon Bolt |
| Material | 316 (ASTM Grade B8M) Stainless Steel |
| Type | Full Thread / Partial Thread |
| Head Type | Hexagon |
| Diameter Range | M6 – M48 / 1/4″ – 2″ |
| Length Range | 10mm – 300mm / 3/8″ – 12″ |
| Thread Type | UNC / UNF / Metric |
| Standard | ASTM A193 Grade B8M |
| Surface Finish | Plain / Passivated / Polished |
Technical Parameter Table
| Parameter | Specification |
|---|---|
| Strength Grade | 70 ksi (ASTM A193 B8M Class 1) |
| Surface Treatment | Passivation / Electro-polishing |
| Standard Compliance | ASTM A193, ISO 4014, DIN 931 |
| Certifications | ISO9001, CE, RoHS |
Material Introduction and Manufacturing Process
The A193 B8M stainless steel hexagon bolt is primarily made from 316 stainless steel, which contains molybdenum for enhanced corrosion resistance, especially in chloride-rich environments. This makes it particularly valuable in marine and chemical processing industries.
Manufacturing Process:
- Raw Material Inspection
- Cold Heading or Hot Forging to Hex-head Shape
- Thread Rolling or Thread Cutting
- Heat Treatment (if required for Class 2 bolts)
- Passivation or Electro-Polishing
- Dimensional and Mechanical Inspection
- Packaging
Each step of this process is monitored to ensure the bolt’s consistency, strength, and finish quality.
Applications in Various Industries
These bolts are engineered for demanding environments and find applications in sectors such as:
- Automotive and Heavy Vehicles
- Industrial & Commercial Construction
- Mechanical Equipment
- Power Generation and Energy Plants
- Household Appliances
- Marine and Offshore Platforms
- Aerospace and Railway Projects
- Electronics and Telecommunication Equipment
Because of their chemical resistance and tensile strength, A193 B8M bolts are especially valued in situations where ordinary fasteners would degrade.
Core Advantages of A193 B8M Stainless Steel Hexagon Bolt
Strength, Corrosion Resistance, and Customization
- Premium Material Selection: Type 316 stainless steel offers exceptional resistance to rust, pitting, and chemical wear.
- Precision Engineering: Tight tolerances and sharp threading for a secure mechanical fit.
- Advanced Surface Finish: Options such as passivation and electropolishing improve corrosion resistance and aesthetics.
- High Customization: Available in a range of sizes, threading types, and finishes for bespoke applications.
- Inventory Assurance: Well-stocked warehouse and streamlined logistics ensure timely delivery.
- Comprehensive After-Sales Support: Dedicated technical service to resolve customer concerns.
These features make the A193 B8M bolt ideal for OEMs and end-users looking for long-term reliability in sensitive environments.
Quality Control and Inspection Process
At Flybear Fastener, stringent quality assurance protocols are followed to maintain industry-grade excellence:
- Thread Gauging & Dimensional Inspections
- Tensile Strength and Hardness Testing
- Salt Spray & Corrosion Resistance Testing
- 100% Batch Sampling Pre-Dispatch
- Certification: ISO9001, IATF16949, and full traceability documentation
Our QC process guarantees that every batch meets or exceeds ASTM and customer-specific requirements.
Commitment to Excellence and Solutions
At Flybear Fastener , we firmly believe in the principle of “Quality First, Customer Foremost.” Our mission is to provide clients with top-tier fastener products and tailored solutions that meet the stringent performance demands of modern industry. Whether you’re in the automotive sector or engaged in high-end marine projects, count on us for reliable sourcing. You’re welcome to contact us to discuss your bolt requirements or obtain a custom quotation.
