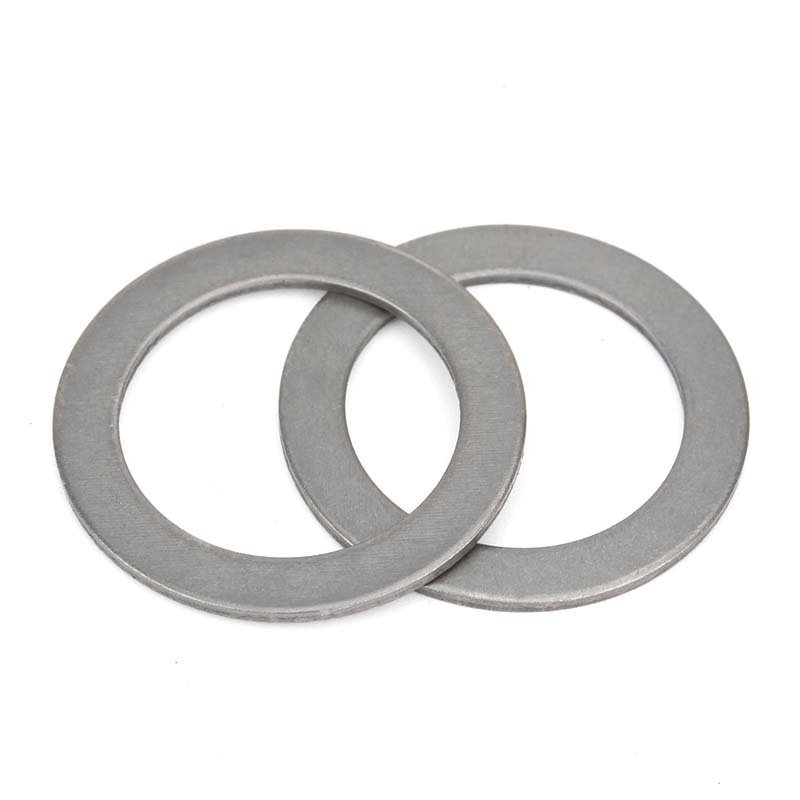

Carbon Steel Shim Rings DIN 988

Carbon Steel Shim Rings DIN 988

Introduction: Shim Rings

Shim Rings are essential mechanical components designed to take up excess space between machine parts, ensuring optimal alignment, spacing, and load distribution. Specifically manufactured according to DIN 988 standard, these rings are prevalent in various mechanical and automotive applications. At Flybear Fastener, we manufacture DIN 988 Shim Rings using premium-grade carbon steel, ensuring strength, durability, and precision.

With their simple yet high-performing design, Shim Rings are ideal for axial spacing in bearings, bushings, gears, and other rotating machine assemblies. These components offer cost-effective solutions for minimizing axial clearance and enhancing machinery life.


Product Specifications

SpecificationDetails
Product NameShim Rings
StandardDIN 988
MaterialCarbon Steel
Thickness0.1mm to 2.0mm
Inner Diameter (ID)3mm to 170mm
Outer Diameter (OD)6mm to 200mm
HardnessAs per customer requirement
Surface FinishPlain, Black oxide, Zinc-plated

Technical Parameters

ParameterValue
Tolerance±0.01 mm
Operating Temperature-40°C to +250°C
Axial Load CapacityVaries based on size & thickness
Corrosion ResistanceModerate (depends on coating)
ComplianceConforms to DIN 988 specifications
Customization OptionsAvailable on size, thickness, finish

Material & Manufacturing Process

The DIN 988 Shim Rings offered by Flybear Fastener are crafted from high-grade carbon steel, chosen for its excellent hardness, wear resistance, and machinability. The manufacturing process involves precision stamping and CNC machining to achieve accurate tolerances and consistent quality.

Key steps include:

  1. Raw Material Inspection – confirming the chemical and mechanical properties of carbon steel.
  2. High-Precision Stamping – each ring is shaped with extreme accuracy to ensure seamless fitting.
  3. Heat Treatment (optional) – enhances the mechanical strength.
  4. Surface Finishing – options such as black oxide and zinc-plating to offer corrosion resistance.
  5. Final Quality Control – every piece goes through dimensional inspection and surface checks.

Typical Applications of DIN 988 Shim Rings

The usage of shim rings spans across diverse industries due to their functional versatility. Common application scenarios include:

  • Automotive gearboxes and transmission assemblies
  • Electric motor and pump systems
  • Machine tool spindles
  • Industrial reducers and bearing housings
  • Aerospace instruments
  • Robotics components & automation systems

These rings are especially crucial in ensuring precision alignment and fine-spacing in low-clearance assemblies.


Benefits & Competitive Advantage

Flybear Fastener provides DIN 988 Shim Rings that stand out due to:

Premium Materials:

We use only selected high-quality carbon steel, ensuring strength and reliability for mechanical installations.

Superior Manufacturing:

Our precision-based fabrication ensures tight tolerances and smooth surfaces. The rings maintain perfect roundness and dimensional conformity.

Surface Treatments:

Available in anti-corrosion finishes like black oxide and zinc plating, suitable for demanding environments.

Customization:

Need unique specifications? Send in your drawing or sample. We can produce in bulk as per your custom needs.

Robust Inventory & Fast Shipping:

We maintain a large inventory to ensure timely order fulfillment.

Comprehensive After-Sales Support:

Our experienced technical team provides timely assistance across all stages — from selection to installation.


Quality Assurance & Inspection

Quality is our top priority. At Flybear Fastener, every Shim Ring undergoes complete dimensional inspection backed by calibrated measurement systems. Tests are performed at multiple stages from production to packaging:

  • Dimensional accuracy using vernier calipers and micrometers
  • Surface roughness testing
  • Coating adhesion tests
  • Load capacity evaluations

Our QC team ensures each product conforms to DIN 988 standards and customer-specific requirements.


Selection Guide: How to Choose the Right Shim Ring

When selecting DIN 988 Shim Rings, consider the following:

  • Shaft diameter and required spacing
  • Operating conditions such as temperature and environment
  • Load-bearing requirements
  • Suitable surface finish (plain, zinc-plated, black oxide)
  • Tolerance considerations for precision machinery

Engineers and purchasing managers should match inner and outer diameters accurately with corresponding machine elements. For custom designs or environments, consult our technical team to make the most informed choice.


Additional Insights

Thanks to their design versatility, DIN 988 Shim Rings are often paired with other precision elements such as retaining rings, spacers, and washers. They are also commonly found in maintenance kits for motors and gearboxes, allowing service engineers to maintain optimal performance without replacing major assemblies.

Keeping a range of sizes in stock allows maintenance facilities to react quickly to repair and alignment needs in mission-critical systems.


Conclusion & Company Profile

We are committed to delivering high-performance fastener products tailored to various industrial needs. At Flybear Fastener, we understand that precision and reliability matter most. That’s why our DIN 988 Shim Rings are crafted with quality, accuracy, and endurance in mind.

We always adhere to the principle of “Quality First, Customer Supreme”, aiming to offer not only premium-grade shim rings but also comprehensive solutions to support your engineering needs.

Explore our wide range of fastener products or contact us to get a custom quotation or discuss your specific industrial application. Enhance your operations with trustworthy solutions from Flybear Fastener — your reliable partner in precision components.
