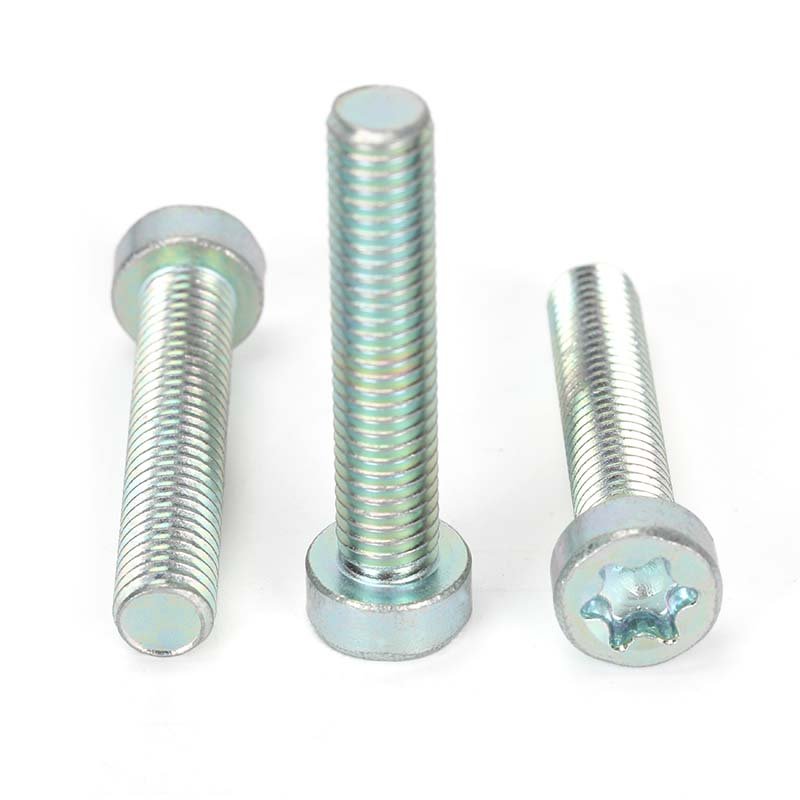

Carbon Steel Torx Socket Low Head Cup Screw
Product Overview
Torx Socket Low Head Cup Screws are a specialized type of fastener known for their compact head design and high-torque Torx drive. They offer a unique combination of strength and space efficiency, making them ideal for tight-space assemblies and precision machinery. Designed to meet both functional and aesthetic demands, these screws feature a low-profile cup head that allows installation where standard socket heads may not fit. Made from high-quality carbon steel, the screws deliver superior tensile strength and durability, while the Torx drive ensures tamper-resistance and robust engagement with the tool.
Their implementation is especially favored in applications requiring flush-mounted fasteners with a high preload under minimal head height.
Product Specification Table
| Specification | Description |
|---|---|
| Product Name | Torx Socket Low Head Cup Screw |
| Drive Type | Torx |
| Head Type | Low Head Cup |
| Thread Type | Metric / UNC / UNF |
| Material | Carbon Steel |
| Finish / Coating | Zinc-plated / Black Oxide / Dacromet |
| Available Sizes | M3 – M12, #4-40 to 1/2″ |
| Application Environment | Industrial, Automotive |
| Customization | Available per drawing/specs |
Technical Data Sheet
| Parameter | Value |
|---|---|
| Proof Load | Up to 80% of yield strength |
| Tensile Strength | > 600 MPa (Carbon Steel) |
| Hardness | HRC 25–36 |
| Thread Tolerance | 6g (metric), Class 2A (UNC/UNF) |
| Drive Size | T10-T50 |
| Head Height | As low as 30% of standard socket heads |
| Operating Temperature | -20°C to 300°C (depending on coating) |
Material & Manufacturing Process
The Torx Socket Low Head Cup Screw is manufactured using high-grade carbon steel, chosen for its tensile strength and reliability under both static and dynamic loads. Carbon steel offers cost-effectiveness without compromising performance.
The production process includes:
- Cold forging the screw body for optimal grain flow direction.
- CNC turning and threading to ensure dimensional precision.
- Head forming under high pressure to achieve low-profile design.
- Heat treatment to enhance mechanical properties.
- Surface finishing using options such as zinc-plating or black oxide for corrosion resistance.
Each step is rigorously monitored to ensure excellent strength and aesthetic consistency across high-volume production.
Primary Applications & Industries
The Torx Socket Low Head Cup Screw is widely used in multiple industries and demanding environments requiring compact, strong, and tamper-resistant fasteners:
- Automotive manufacturing (dashboard assembly, braking systems)
- Aerospace components (lightweight structures)
- Electronic enclosures
- Robotics and automation systems
- Precision machinery
- Medical devices
- Defense equipment and firearms
Because of their low head height, they’re suitable for designs where clearance is limited but strength cannot be compromised.
Key Features & Advantages of Torx Socket Low Head Cup Screw
Core Keyword Section: Torx Socket Low Head Cup Screw Advantages
- 🔩 Material Excellence: Fabricated using high-grade carbon steel for unmatched reliability in structural applications.
- 🔩 Precision Engineering: Maintains tight thread tolerances and consistent dimensional accuracy, suitable for high-speed assembly lines.
- 🔩 Advanced Surface Treatments: Zinc-plated or black oxide coatings ensure excellent corrosion resistance, extending service life.
- 🔩 Customization Flexibility: We offer full support for OEM/ODM requirements—tailor-made per your drawings or application needs.
- 🔩 Ample-stock & Prompt Delivery: Maintained inventory supports rapid lead times for both samples and large production runs.
- 🔩 After-sales & Tech Support: Our expert team provides responsive service from design validation to post-delivery troubleshooting.
Quality Control & Testing at Flybear Fastener
At Flybear Fastener, we apply strict multilayered quality protocols throughout the production cycle. Our in-house laboratory is equipped for testing:
- Dimensional accuracy using micrometers and gauges
- Thread consistency via thread ring gauges
- Torque and tensile testing to validate mechanical properties
- Salt spray tests for corrosion resistance verification
- Visual inspections per ISO 3269
Our ISO-certified processes ensure that every lot meets or exceeds customer specifications.
Selection & Purchasing Guide
When selecting the proper Torx socket low head cup screw, consider the following:
- Thread Type: Metric or UNC/UNF depending on region and assembly part.
- Head Clearance: Low-profile head requirements for your space-constrained application.
- Torque Requirements: Match drive size with your installation tools (T10 to T50).
- Finish: Choose black oxide for discrete appearance; zinc for corrosion resistance.
- Load Conditions: Confirm tensile strength compatibility with application stress.
Feel free to browse our fastener products for other choices or contact us for technical support and performance-based recommendation.
Conclusion & Company Promotion
At Flybear Fastener, we recognize how critical the right fastener is in contributing to the overall performance and reliability of your equipment. Our expertise and commitment ensure that you don’t just get a product, but a complete engineering-backed experience.
We always uphold the philosophy of:
“We always adhere to the principle of ‘Quality First, Customer Foremost’, and are committed to providing customers with high-quality fastener products and one-stop fastening solutions.”
Explore our website for other available products or reach out to us through our contact us page to get a tailored quote or industry-specific consultation!
