ASME B18.2.2 Hex Nuts Guide: Grades, Materials and Industrial Applications

ASME B18.2.2 hex nuts are one of the most widely used fastening components in industrial, construction, and engineering applications. These standardized nuts are designed to match inch-series bolts and threaded rods, ensuring reliable clamping performance across a wide range of conditions. Understanding their grades, materials, and applications is essential for engineers, buyers, and procurement specialists.

At Flybear Fastener, we help global customers select the right hex nut solutions based on performance requirements, environmental conditions, and industry standards.

What Is ASME B18.2.2 Hex Nuts?

ASME B18.2.2 is the primary dimensional standard for inch-series hex nuts. It defines critical parameters such as width across flats, height, and thread compatibility. These nuts are designed to work with bolts conforming to ASME B18.2.1 and unified thread standards (UNC/UNF).

This standard includes various types of hex nuts, including finished hex nuts, heavy hex nuts, and jam nuts, each serving different engineering needs.

Types of Hex Nuts Under ASME B18.2.2

Hex nuts under this standard can be categorized into several common types:

• Finished Hex Nuts – Standard thickness for general applications
• Heavy Hex Nuts – Thicker and wider for high-strength and structural use
• Jam Nuts – Thin nuts used for locking or adjustment purposes

Heavy hex nuts are commonly used in flange connections and high-pressure systems.

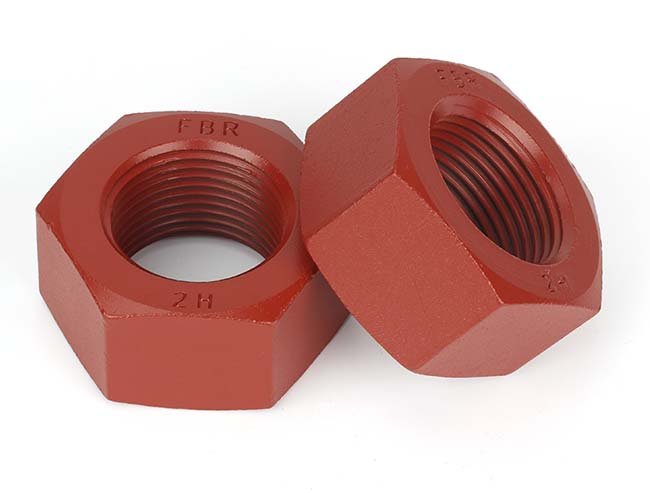

ASTM A194 Grade 2H Heavy Hex Nut

ASTM A194 Grade 2H heavy hex nuts are designed for high-pressure and high-temperature applications. They are typically used with ASTM A193 B7 stud bolts in industries such as oil & gas and petrochemical processing.

• Material: Carbon steel (heat-treated)
• Application: Pressure vessels, pipelines, flanges
• Features: High strength, excellent load-bearing capacity

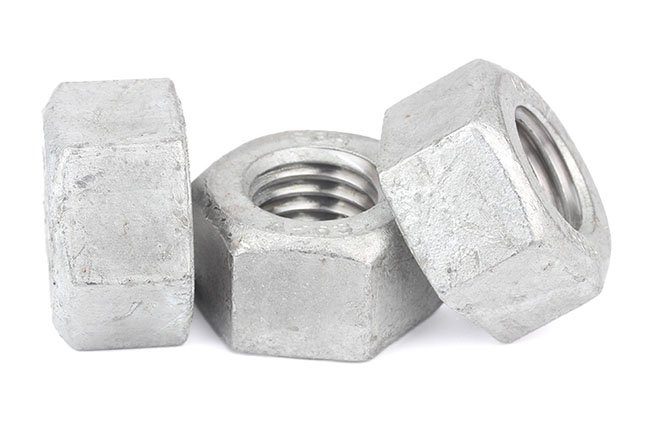

ASTM A563 Grade C and Grade DH Hex Nuts

ASTM A563 hex nuts are widely used for structural and general engineering applications. Two commonly used grades include:

• Grade C – Medium strength carbon steel nuts for general use
• Grade DH – Heat-treated heavy hex nuts for high-strength applications

Grade DH nuts are often paired with structural bolts where higher mechanical performance is required.

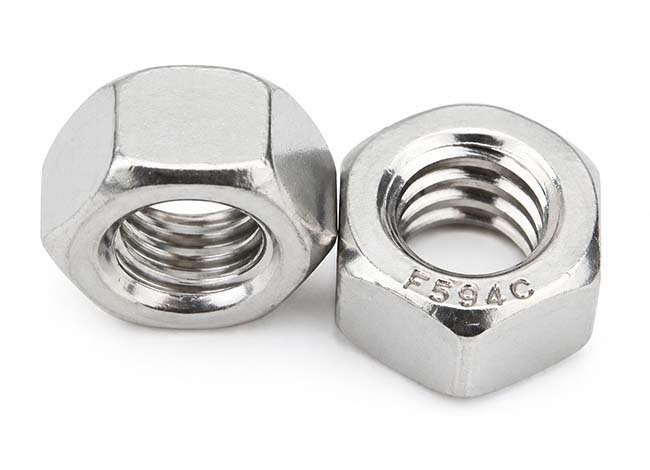

ASTM F594 Stainless Steel Hex Nuts

ASTM F594 covers stainless steel hex nuts, typically available in 304 and 316 grades.

• 304 Stainless Steel – General corrosion resistance
• 316 Stainless Steel – Superior corrosion resistance for marine and chemical environments

These nuts are widely used in outdoor, coastal, and chemical applications where rust prevention is critical.

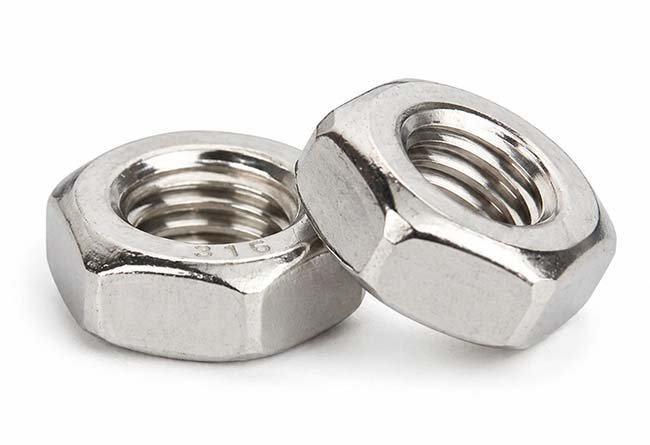

Jam Nuts in ASME B18.2.2 Hex Nuts

ASME B18.2.2 hex nuts also include jam nuts, which are thinner than standard hex nuts. They are typically used in locking applications where two nuts are tightened against each other to prevent loosening.

Jam nuts are commonly used in mechanical assemblies and adjustment mechanisms.

Materials Used in ASME B18.2.2 Hex Nuts

The choice of material affects strength, durability, and corrosion resistance:

• Carbon Steel – Cost-effective and widely used
• Alloy Steel – High strength for demanding applications
• Stainless Steel (304 / 316) – Corrosion-resistant for harsh environments

Material selection should match the bolt grade to ensure compatibility and performance.

Surface Finishes and Coatings

Surface treatment improves corrosion resistance and extends service life. Common finishes include:

• Zinc Plated (Blue White Zinc)
• Hot-Dip Galvanized (HDG)
• Black Oxide
• Zinc Flake Coating

Zinc plating is the most common due to its balance between cost and protection.

Applications of ASME B18.2.2 Hex Nuts

These hex nuts are used in a wide range of industries:

• Construction and structural engineering
• Oil and gas pipelines
• Automotive manufacturing
• Heavy machinery
• Electrical and mechanical systems

Heavy hex nuts are especially important in flange connections where secure and stable fastening is critical.

ASME B18.2.2 Hex Nuts Selection Guide

When selecting hex nuts, consider the following factors:

• Bolt grade and compatibility
• Load and stress requirements
• Environmental conditions
• Corrosion resistance needs
• Surface coating requirements

For high-pressure systems, ASTM A194 2H is recommended. For structural applications, ASTM A563 DH is preferred. For corrosive environments, stainless steel hex nuts are the best choice.

Why ASME B18.2.2 Hex Nuts Are Essential

ASME B18.2.2 hex nuts provide standardized performance, ensuring compatibility and reliability across fastening systems. Their wide range of grades and materials allows them to be used in everything from general assembly to critical industrial applications.

Conclusion

ASME B18.2.2 hex nuts are fundamental components in fastening systems. From ASTM A194 2H heavy hex nuts to ASTM F594 stainless steel nuts, each type serves a specific purpose. By understanding their standards, grades, and applications, buyers can optimize both safety and performance.

Choosing the right hex nut ensures long-term reliability and cost efficiency in any engineering project.
