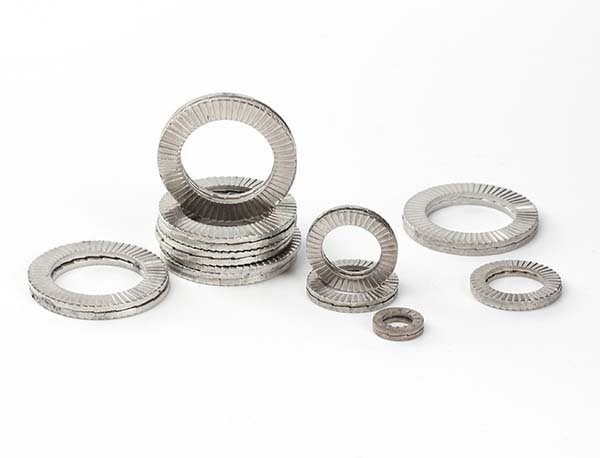

DIN 25201 Wedge Lock Washers: Comprehensive Guide for High-Performance Fastening

DIN 25201 wedge lock washers are advanced fastening components designed to prevent loosening under high vibration, dynamic loads, and extreme operational conditions. Unlike traditional spring washers or nylon-insert lock nuts, these dual-layer self-locking washers provide reliable, reusable locking through a mechanical wedge mechanism, ensuring stability and safety in critical applications.

At Flybear Fastener, we offer a wide range of DIN 25201 wedge lock washers in carbon steel and stainless steel, catering to industries where joint reliability is paramount, including aerospace, energy, and heavy machinery sectors.

Understanding DIN 25201 Wedge Lock Washers

DIN 25201 specifies dual-layer metal washers designed to generate prevailing torque when assembled with bolts or studs. The inner surfaces of the paired washers are angled, creating a wedge effect, while the outer teeth bite into the mating surfaces, preventing unintentional loosening. This design makes them ideal for high-vibration environments, unlike standard spring washers that rely primarily on elastic tension.

Material Selection for DIN 25201 Wedge Lock Washers

Material choice directly affects the performance of wedge lock washers. Common options include:

Carbon Steel – cost-effective, high strength, suitable for general industrial applications
Stainless Steel (A2-70 / A4-80) – excellent corrosion resistance for marine and chemical environments
Alloy Steel – used in heavy-duty or high-temperature conditions

Proper material selection ensures the washer maintains integrity under extreme loads and environmental exposure.

Dimensions and Standardization

DIN 25201 wedge lock washers are typically available in metric sizes ranging from M3 to M42, with corresponding outer diameters and wedge angles specified to provide consistent locking performance. English sizes cover approximately #5 to 1½ inch. Correct sizing is essential to ensure the wedge mechanism functions as intended.

Advantages of DIN 25201 Wedge Lock Washers

DIN 25201 wedge lock washers offer multiple advantages over conventional locking solutions:

High vibration resistance without additional components
Reusability due to metal-to-metal design
Consistent prevailing torque even in high-temperature environments
Enhanced load distribution and joint stability

These washers are often preferred in applications where failure is not an option, such as turbine assemblies, heavy machinery, or structural connections in the automotive and aerospace industries.

Applications Across Industries

Industries benefiting from DIN 25201 wedge lock washers include:

Aerospace components and assemblies
Wind turbines and renewable energy structures
Railway systems and heavy transport
High-vibration machinery and industrial equipment
Marine applications exposed to corrosion and dynamic loads

In these applications, the wedge lock mechanism ensures long-term reliability, minimizing maintenance and downtime.

Installation and Best Practices

Correct installation is crucial for performance. Key points include:

Pairing washers in the correct orientation to engage the wedge surfaces
Using compatible bolts or studs as recommended by DIN 25201 specifications
Ensuring mating surfaces are clean and free of lubricants to maximize friction
Verifying torque according to engineering requirements

Following these guidelines ensures that the locking mechanism performs effectively under all operating conditions.

Conclusion

DIN 25201 wedge lock washers are a high-performance solution for preventing fastener loosening in challenging environments. Their dual-layer, all-metal construction provides unmatched vibration resistance, durability, and reliability. By understanding the material options, dimensions, applications, and installation best practices, engineers and procurement specialists can optimize assembly integrity in critical systems.
